Car Alarm Arming Horn Beep Canceller

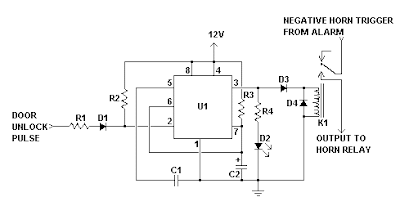

It's a great convenience that most modern cars come with a built in alarm, however it is nothing but noise pollution that the horn sounds when the alarm is armed. Disconnecting the alarm system from the horn relay will eliminate this, but prevent the horn from sounding in the even of an actual alarm. This circuit serves to silence the arming beep yet maintain the alarm by introducing a small delay into the signal. It sits between the alarm and horn relay. The alarm must provide a constant horn signal for at least 3 seconds before the horn relay is activated. That way the quick "beep" will never activate the horn relay, while the constant alarm signal will.
Parts
C1               0.01uF ceramic disc capacitor
C2               100uF  35v electrolytic capacitor
R1                1k
R2                10k
R3                15k
R4                470ohm
D1,3,4         3(1N4004)rectifier diode
D2                red led
U1                555 timer ic
K1                spst 12v automotive relay
